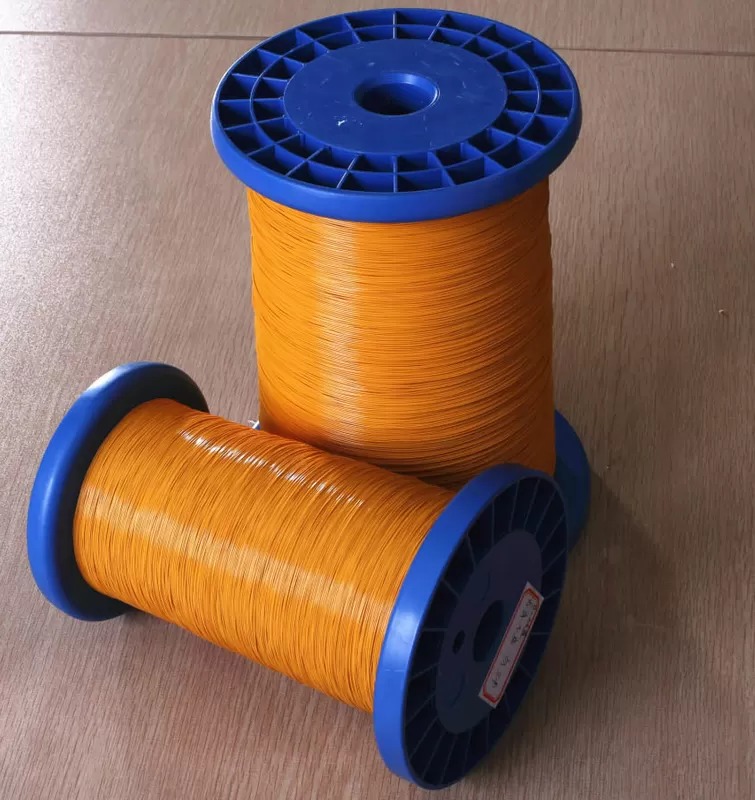

Triple Insulated Wires

TIW Wires Grade F

UL Certified ROHS Certified
Pro Image

Relative Specification for TIW-M(B), (F)

Certification Organization UL CSA TUV NEMKO VDE BSI EIS
Applied Spec
  • UL1950
  • UL2353
  • UL1411
  • UL60950-1
  • C22.2 NO.1-98
  • NO.66-1988
  • NO.223-M91
  • NO.60950-00
  • EN60950-1
  • N60065
  • IEC60950
  • EN60950
  • EN60950-1
  • EN60065
  • EN61558-1
  • EN60601-1
  • CIS.04
  • HITACHI
  • HIS-8B
  • CIS.04
  • HITACHI
  • HIS-8B

Standard Specification for TIW-M

Construction Breakdown Voltage Conductor Resistance (20ºC) Length Bobbin Size Weight
Conductor Overall Diameter Max Dia.
Diameter Tolerance
(mm) (mm) (mm) (mm) (V) (Ω/km) (m) - (Kg)
0.20 ±0.008 0.360~0.400~0.420 0.430 6000 607.6 6000 PT-10 2.9
0.23 ±0.008 0.410~0.430~0.450 0.460 6000 465.5 6000 PT-10 3.5
0.26 ±0.008 0.430~0.450~0.470 0.480 6000 382.5 6000 PT-10 4.0
0.28 ±0.008 0.460~0.480~0.500 0.510 6000 307.3 6000 PT-10 4.7
0.30 ±0.008 0.480~0.500~0.520 0.530 6500 262.9 5000 PT-10 5.0
0.35 ±0.010 0.530~0.550~0.570 0.600 6500 191.2 5000 PT-10 5.7
0.40 ±0.010 0.580~0.600~0.620 0.660 7000 145.3 5000 PT-15 7.3
0.45 ±0.010 0.630~0.650~0.670 0.710 7000 114.2 5000 PT-15 8.9
0.50 ±0.010 0.680~0.700~0.720 0.760 7000 91.43 4000 PT-15 8.7
0.55 ±0.020 0.720~0.740~0.760 0.800 7000 75.18 4000 PT-15 10.3
0.60 ±0.020 0.770~0.800~0.830 0.860 7000 65.26 3000 PT-15 9.1
0.65 ±0.020 0.820~0.850~0.880 0.910 7000 55.31 3000 PT-25 11.5
0.70 ±0.020 0.870~0.900~0.930 0.960 7000 47.90 3000 PT-25 12.2
0.75 ±0.020 0.920~0.950~0.980 1.010 7000 41.19 3000 PT-25 13.8
0.80 ±0.020 0.970~1.000~1.030 1.060 7000 36.05 3000 PT-25 15.5
0.85 ±0.020 1.020~1.050~1.080 1.110 7000 31.87 2000 PT-25 11.9
0.90 ±0.020 1.070~1.100~1.130 1.160 7000 28.06 2000 PT-25 13.1
0.95 ±0.020 1.120~1.150~1.180 1.210 7000 25.88 2000 PT-25 14.5
1.00 ±0.030 1.170~1.200~1.230 1.260 7000 23.33 2000 PT-25 15.9

*Length can be modified by request.

Suggested Soldering Temperature

Conductor Diameter Soldering Temperature Soldering Time
0.20mm - 0.40mm 420 ±5º C 4 seconds
0.45mm - 0.70mm 6 seconds
0.75mm - 1.00mm 8 seconds

TIW-M(B,F,LZ)

Applicable Color

Standard : Yellow(B,LZ), Pink(F)

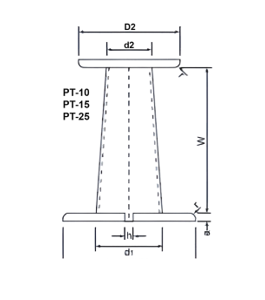

Bobbin Size
Spool Flange Diameter
(mm) 		Barrel Diameter
(mm) 		Inside Width Flance Thickness Bore Diameter Spool Weight Net Standard Net Weight
D1 D2 d1 d2 (mm) (mm) (mm) (mm) (mm)
PT-10 180±0.5 160±0.5 110±0.5 96±0.5 200±0.4 15±0.5 26±0.5º 520±5 10.0
PT-15 200±0.5 180±0.5 110±0.5 96±0.5 200±0.4 15±0.5 30±0.5º 740±15 15.00
